Description

The QMC5883L is a multi-chip three-axis magnetic sensor. This surface -mount, small sized chip has integrated magnetic sensors with signal condition ASIC, targeted for high precision applications such as compassing, navigation and gaming in drone, robot, mobile and personal hand-held devices.


The QMC5883L is based on our state-of-the-art, high resolution, magneto-resistive technology licensed from Honeywell AMR technology. Along with custom-designed 16-bit ADC ASIC, it offers the advantages of low noise, high accuracy, low power consumption, offset cancellation and temperature compensation. QMC5883L enables 1° to 2° compass heading accuracy. The I²C serial bus allows for easy interface.

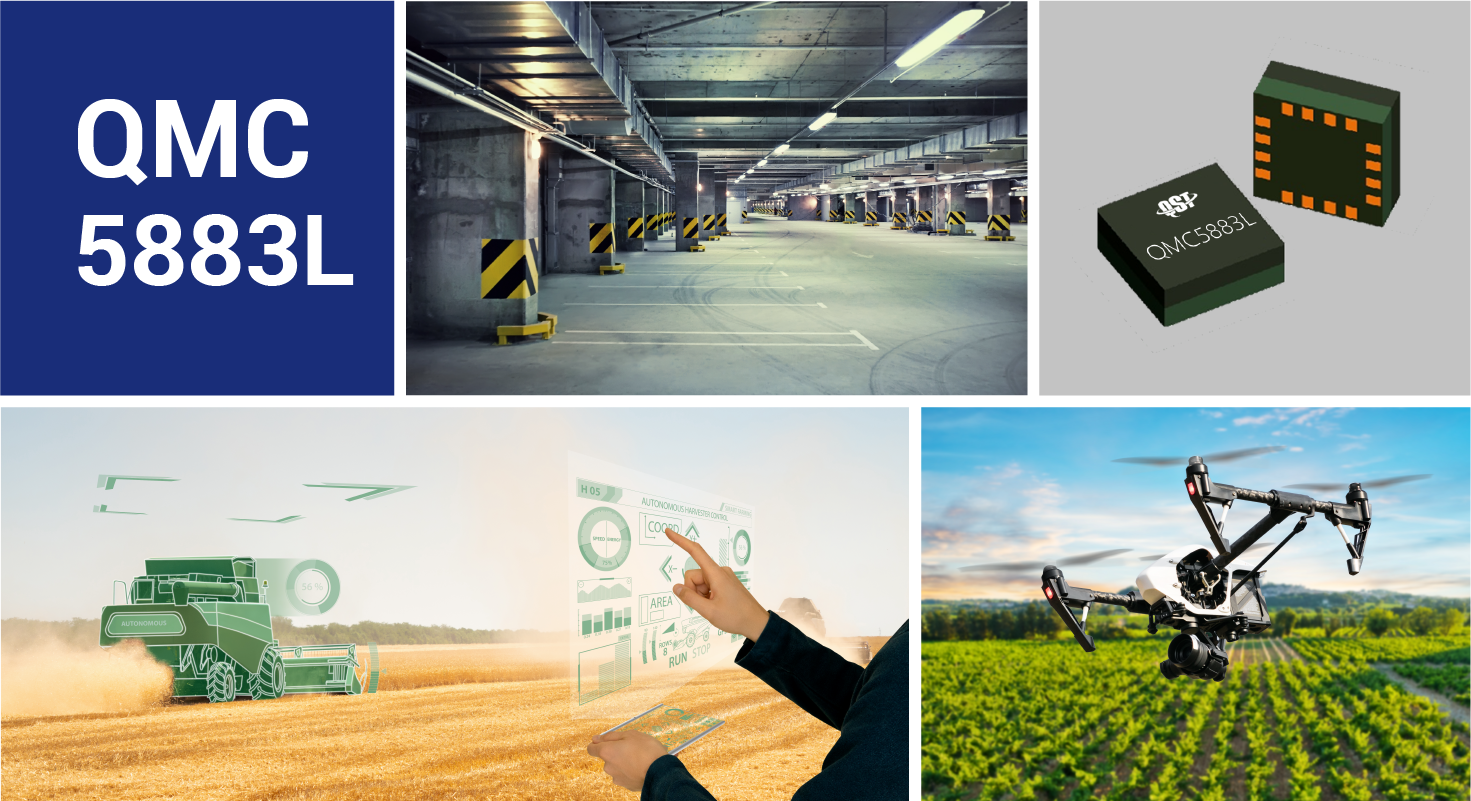

 The QMC5883L is in a 3x3x0.9mm3 surface mount 16-pin land grid array (LGA) package.

Features

▪ 3-Axis Magneto-Resistive Sensors in a 3x3x0.9 mm3 Land Grid Array Package (LGA), guaranteed to operate over an extended temperature range of -40 °C to +85 °C.

▪ 16 Bit ADC With Low Noise AMR Sensors Achieves 2 Milli-Gauss Field Resolution

▪ Wide Magnetic Field Range (±8 Gauss)

▪ Temperature Compensated Data Output and Temperature Output

▪ I 2 C Interface with Standard and Fast Modes.

▪ Wide Range Operation Voltage (2.16V To 3.6V) and Low Power Consumption (75μA)

▪ Lead Free Package Construction

▪ Software And Algorithm Support Available


Applications
